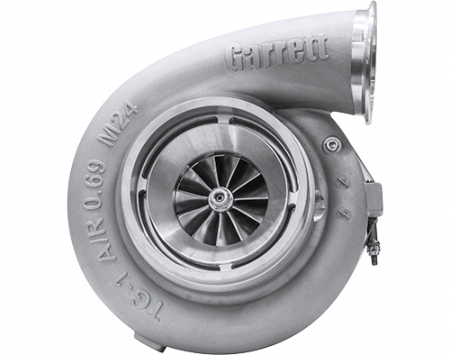

GTX5533R GEN II

GTX5533R GEN II

Horsepower: 1000 - 2500

Displacement: 3.0L - 12.0L

Features:

  • Gen II aerodynamics feature increased horsepower range
  • New fully-machined speed sensor port
  • Improved ported shroud design for surge resistance
  • Lightweight billet backplate
  • SFI Super Core and turbine options available
  • V-Band compressor outlet configuration
  • Super Core and Turbine Kit sold separately

* SFI CERTIFIED PRODUCS:

  • 851285-5007S
  • 761208-0026
  • 761208-0027
Turbocharger includes FREE gasket kit

Super Core

Compressor    Turbine
Super Core PN Inducer Exducer Trim A/R Inducer Exducer Trim Rotation Hinta
851285-5007S
Loppu varastosta
88mm * 133mm 44 0.88 112mm 102mm 84 Standard
3599.00 € 2902.42 € alv. 0%
851285-5005S
Loppu varastosta
98mm 133mm 54 0.96 112mm 102mm 84 Standard
3649.00 € 2942.74 € alv. 0%
851285-5004S
Loppu varastosta
94mm 133mm 50 0.96 112mm 102mm 84 Standard
3489.00 € 2813.71 € alv. 0%
851285-5003S
Loppu varastosta
91mm 133mm 47 0.96 112mm 102mm 84 Standard
3399.00 € 2741.13 € alv. 0%
851285-5002S
Loppu varastosta
88mm 133mm 44 0.88 112mm 102mm 84 Standard
3319.00 € 2676.61 € alv. 0%
851285-5001S
Loppu varastosta
85mm 133mm 41 0.88 112mm 102mm 84 Standard
3259.00 € 2628.23 € alv. 0%
Compressor    Turbine
Super Core PN Inducer Exducer Trim A/R Inducer Exducer Trim Hinta
Turbo PN: 851285-5007S
3599.00 € 2902.42 € alv. 0%
851285-5007S
Compressor Inducer
88mm * 		Exducer
133mm		 Trim
44		 A/R
0.88		 Turbine Inducer
112mm 		Exducer
102mm		 Trim
84
3599.00 €
Rotation: Standard Loppu varastosta | 2902.42 € alv. 0%
Turbo PN: 851285-5005S
3649.00 € 2942.74 € alv. 0%
851285-5005S
Compressor Inducer
98mm 		Exducer
133mm		 Trim
54		 A/R
0.96		 Turbine Inducer
112mm 		Exducer
102mm		 Trim
84
3649.00 €
Rotation: Standard Loppu varastosta | 2942.74 € alv. 0%
Turbo PN: 851285-5004S
3489.00 € 2813.71 € alv. 0%
851285-5004S
Compressor Inducer
94mm 		Exducer
133mm		 Trim
50		 A/R
0.96		 Turbine Inducer
112mm 		Exducer
102mm		 Trim
84
3489.00 €
Rotation: Standard Loppu varastosta | 2813.71 € alv. 0%
Turbo PN: 851285-5003S
3399.00 € 2741.13 € alv. 0%
851285-5003S
Compressor Inducer
91mm 		Exducer
133mm		 Trim
47		 A/R
0.96		 Turbine Inducer
112mm 		Exducer
102mm		 Trim
84
3399.00 €
Rotation: Standard Loppu varastosta | 2741.13 € alv. 0%
Turbo PN: 851285-5002S
3319.00 € 2676.61 € alv. 0%
851285-5002S
Compressor Inducer
88mm 		Exducer
133mm		 Trim
44		 A/R
0.88		 Turbine Inducer
112mm 		Exducer
102mm		 Trim
84
3319.00 €
Rotation: Standard Loppu varastosta | 2676.61 € alv. 0%
Turbo PN: 851285-5001S
3259.00 € 2628.23 € alv. 0%
851285-5001S
Compressor Inducer
85mm 		Exducer
133mm		 Trim
41		 A/R
0.88		 Turbine Inducer
112mm 		Exducer
102mm		 Trim
84
3259.00 €
Rotation: Standard Loppu varastosta | 2628.23 € alv. 0%

Turbine Hsg

Non Wastegate
Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Rotation Hinta
761208-0017
Loppu varastosta
1.40 T6 V-Band No No 84 Standard
649.00 € 523.39 € alv. 0%
761208-0014
Loppu varastosta
1.00 T6 V-Band No No 84 Standard
649.00 € 523.39 € alv. 0%
761208-0015
Loppu varastosta
1.12 T6 V-Band No No 84 Standard
649.00 € 523.39 € alv. 0%
761208-0025
Loppu varastosta
1.24 T6 V-Band No No 84 Standard
649.00 € 523.39 € alv. 0%
761208-0026
Loppu varastosta
1.00 * T6 V-Band No No 84 Standard
949.00 € 765.32 € alv. 0%
761208-0027
Loppu varastosta
1.24 * T6 V-Band No No 84 Standard
949.00 € 765.32 € alv. 0%
761208-0029
Loppu varastosta
1.30 V-Band X-Bolt No No 84 Standard
1599.00 € 1289.52 € alv. 0%
761208-0063
Loppu varastosta
1.40 V-Band V-Band No No Standard
1299.00 € 1047.58 € alv. 0%
761208-0062
Loppu varastosta
1.24 V-Band V-Band No No 84 Standard
849.00 € 684.68 € alv. 0%
761208-0054
Loppu varastosta
1.24* V-Band X-Bolt No No 84 Standard
1369.00 € 1104.03 € alv. 0%
761208-0055
Loppu varastosta
1.40 V-Band X-Bolt No No 84 Standard
1439.00 € 1160.48 € alv. 0%
Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Hinta
Turbine Kit PN: 761208-0017
649.00 € 523.39 € alv. 0%
761208-0017
A/R
1.40		 Inlet
T6		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
649.00 €
Rotation: Standard Loppu varastosta | 523.39 € alv. 0%
Turbine Kit PN: 761208-0014
649.00 € 523.39 € alv. 0%
761208-0014
A/R
1.00		 Inlet
 T6		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
649.00 €
Rotation: Standard Loppu varastosta | 523.39 € alv. 0%
Turbine Kit PN: 761208-0015
649.00 € 523.39 € alv. 0%
761208-0015
A/R
1.12		 Inlet
 T6		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
649.00 €
Rotation: Standard Loppu varastosta | 523.39 € alv. 0%
Turbine Kit PN: 761208-0025
649.00 € 523.39 € alv. 0%
761208-0025
A/R
1.24		 Inlet
 T6		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
649.00 €
Rotation: Standard Loppu varastosta | 523.39 € alv. 0%
Turbine Kit PN: 761208-0026
949.00 € 765.32 € alv. 0%
761208-0026
A/R
1.00 *		 Inlet
 T6		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
949.00 €
Rotation: Standard Loppu varastosta | 765.32 € alv. 0%
Turbine Kit PN: 761208-0027
949.00 € 765.32 € alv. 0%
761208-0027
A/R
1.24 *		 Inlet
 T6		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
949.00 €
Rotation: Standard Loppu varastosta | 765.32 € alv. 0%
Turbine Kit PN: 761208-0029
1599.00 € 1289.52 € alv. 0%
761208-0029
A/R
1.30		 Inlet
V-Band		 Outlet
X-Bolt		 Wastegate
No		 Divided
No		 Trim
84
1599.00 €
Rotation: Standard Loppu varastosta | 1289.52 € alv. 0%
Turbine Kit PN: 761208-0063
1299.00 € 1047.58 € alv. 0%
761208-0063
A/R
1.40		 Inlet
V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
1299.00 €
Rotation: Standard Loppu varastosta | 1047.58 € alv. 0%
Turbine Kit PN: 761208-0062
849.00 € 684.68 € alv. 0%
761208-0062
A/R
1.24		 Inlet
V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
849.00 €
Rotation: Standard Loppu varastosta | 684.68 € alv. 0%
Turbine Kit PN: 761208-0054
1369.00 € 1104.03 € alv. 0%
761208-0054
A/R
1.24*		 Inlet
V-Band		 Outlet
X-Bolt		 Wastegate
No		 Divided
No		 Trim
84
1369.00 €
Rotation: Standard Loppu varastosta | 1104.03 € alv. 0%
Turbine Kit PN: 761208-0055
1439.00 € 1160.48 € alv. 0%
761208-0055
A/R
1.40		 Inlet
V-Band		 Outlet
X-Bolt		 Wastegate
No		 Divided
No		 Trim
84
1439.00 €
Rotation: Standard Loppu varastosta | 1160.48 € alv. 0%

Actuator Assembly

480009-0009
79.00 €
63.71 € alv. 0% | Loppu varastosta
480009-0006
79.00 €
63.71 € alv. 0% | Loppu varastosta
