G40-900

G40-900

Horsepower: 500 - 900

Displacement: 2.0L - 6.0L

Features:

  • G-Series compressor aero increases flow up to 35% (compared to GTX4088R)
  • Dual ceramic ball bearing with steel cages
  • G-Series turbine aero increases flow 16% (compared to GTX4088R)
  • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
  • Lighweight aluminium backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings available with T4 twinn scroll inlet
  • T4 turbine housing outlet V-Band dimension is equal to existing GTX42, GTX45 and G42 models

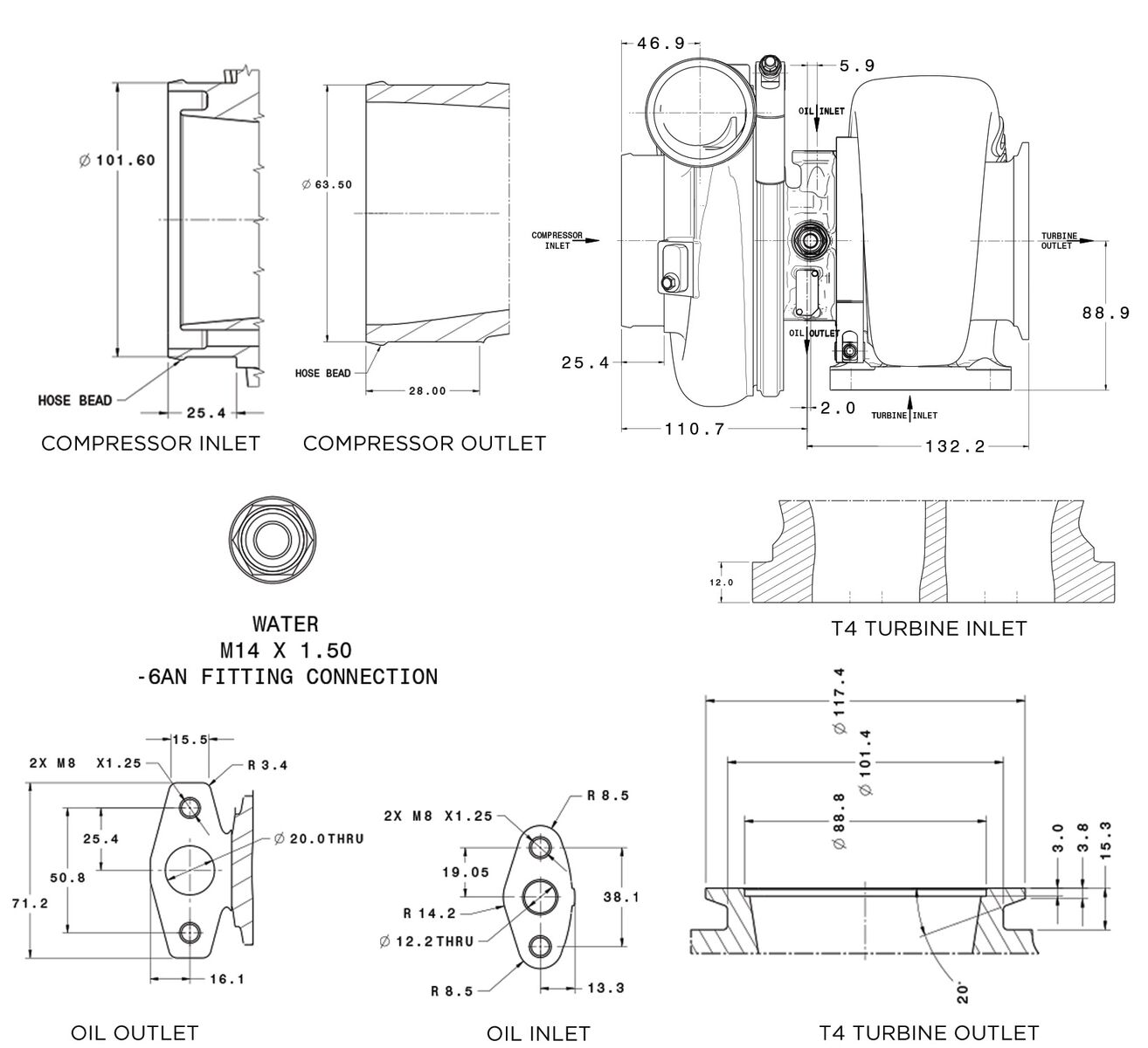

Flange diagram

Super Core

Compressor    Turbine
Super Core PN Inducer Exducer Trim A/R Inducer Exducer Trim Rotation Hinta
860777-5003S
Loppu varastosta
68mm 88mm 51 0.80 77mm 70mm 84 Standard
1719.00 € 1386.29 € alv. 0%
Compressor    Turbine
Super Core PN Inducer Exducer Trim A/R Inducer Exducer Trim Hinta
Turbo PN: 860777-5003S
1719.00 € 1386.29 € alv. 0%
860777-5003S
Compressor Inducer
68mm 		Exducer
88mm		 Trim
51		 A/R
0.80		 Turbine Inducer
77mm 		Exducer
70mm		 Trim
84
1719.00 €
Rotation: Standard Loppu varastosta | 1386.29 € alv. 0%

Turbine Hsg

Non Wastegate
Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Rotation Hinta
757707-0030
Loppu varastosta
1.19 V-Band V-Band No No 84 Standard
569.00 € 458.87 € alv. 0%
757707-0034
Loppu varastosta
1.06 T4 V-Band No Yes 84 Standard
609.00 € 491.13 € alv. 0%
757707-0027
Loppu varastosta
0.85 V-Band V-Band No No 84 Standard
569.00 € 458.87 € alv. 0%
757707-0035
Loppu varastosta
1.19 T4 V-Band No Yes 84 Standard
609.00 € 491.13 € alv. 0%
757707-0033
Loppu varastosta
0.95 T4 V-Band No Yes 84 Standard
609.00 € 491.13 € alv. 0%
757707-0032
Loppu varastosta
0.85 T4 V-Band No Yes 84 Standard
689.00 € 555.65 € alv. 0%
757707-0028
Loppu varastosta
0.95 V-Band V-Band No No 84 Standard
569.00 € 458.87 € alv. 0%
757707-0029
Loppu varastosta
1.06 V-Band V-Band No No 84 Standard
569.00 € 458.87 € alv. 0%
Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Hinta
Turbine Kit PN: 757707-0030
569.00 € 458.87 € alv. 0%
757707-0030
A/R
1.19		 Inlet
V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
569.00 €
Rotation: Standard Loppu varastosta | 458.87 € alv. 0%
Turbine Kit PN: 757707-0034
609.00 € 491.13 € alv. 0%
757707-0034
A/R
1.06		 Inlet
T4		 Outlet
V-Band		 Wastegate
No		 Divided
Yes		 Trim
84
609.00 €
Rotation: Standard Loppu varastosta | 491.13 € alv. 0%
Turbine Kit PN: 757707-0027
569.00 € 458.87 € alv. 0%
757707-0027
A/R
0.85		 Inlet
V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
569.00 €
Rotation: Standard Loppu varastosta | 458.87 € alv. 0%
Turbine Kit PN: 757707-0035
609.00 € 491.13 € alv. 0%
757707-0035
A/R
1.19		 Inlet
T4		 Outlet
V-Band		 Wastegate
No		 Divided
Yes		 Trim
84
609.00 €
Rotation: Standard Loppu varastosta | 491.13 € alv. 0%
Turbine Kit PN: 757707-0033
609.00 € 491.13 € alv. 0%
757707-0033
A/R
0.95		 Inlet
T4		 Outlet
V-Band		 Wastegate
No		 Divided
Yes		 Trim
84
609.00 €
Rotation: Standard Loppu varastosta | 491.13 € alv. 0%
Turbine Kit PN: 757707-0032
689.00 € 555.65 € alv. 0%
757707-0032
A/R
0.85		 Inlet
T4		 Outlet
V-Band		 Wastegate
No		 Divided
Yes		 Trim
84
689.00 €
Rotation: Standard Loppu varastosta | 555.65 € alv. 0%
Turbine Kit PN: 757707-0028
569.00 € 458.87 € alv. 0%
757707-0028
A/R
0.95		 Inlet
V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
569.00 €
Rotation: Standard Loppu varastosta | 458.87 € alv. 0%
Turbine Kit PN: 757707-0029
569.00 € 458.87 € alv. 0%
757707-0029
A/R
1.06		 Inlet
V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No		 Trim
84
569.00 €
Rotation: Standard Loppu varastosta | 458.87 € alv. 0%
