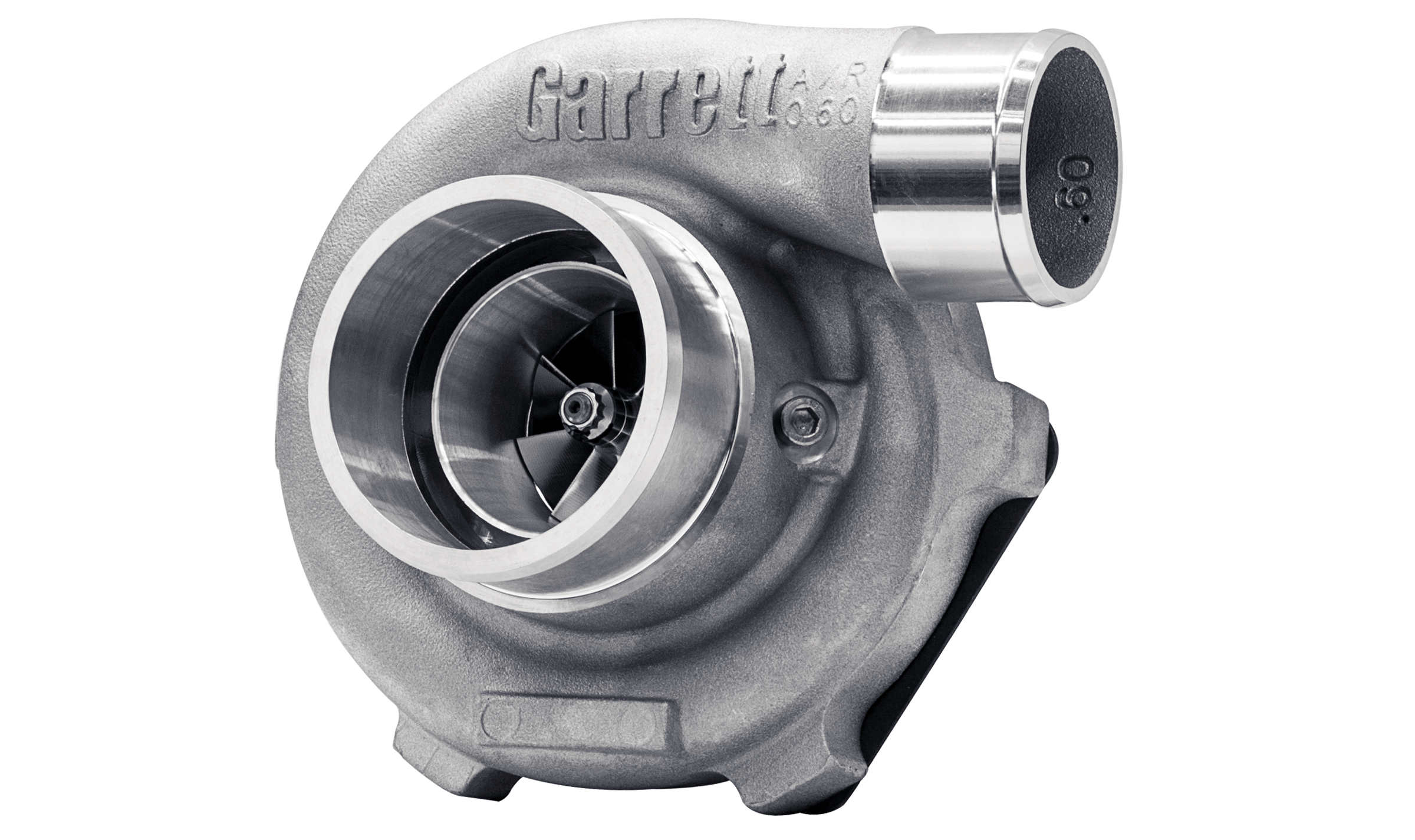

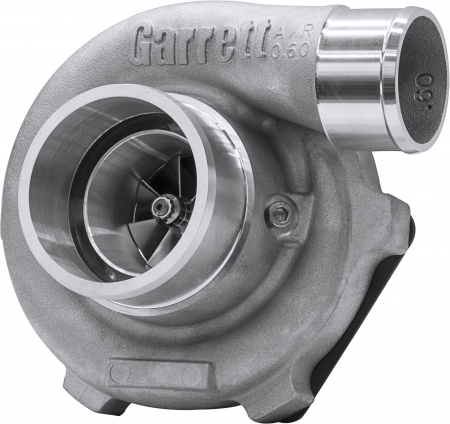

GTX2860R GEN II

GTX2860R GEN II

Horsepower: 200 - 475

Displacement: 1.4L - 2.5L

Features:

  • Gen II aerodynamics feature increased horsepower range
  • Improved ported shroud design for surge resistance
  • New fully machined speed sensort port
  • Sold as assembly kits (Super Core + Turbine housing)
Turbocharger includes FREE gasket kit

Flange diagram

Turbocharger

Compressor    Turbine   Turbine kit
Turbo PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet Wastegate Divided Rotation Hinta
856800-5003S Turbo GTX2860R Gen II - 856800-5003S
Loppu varastosta
46mm 60mm 58 0.60 54mm 47mm 76 0.64 T25 5-Bolt Yes No Standard
1429.00 € 1152.42 € alv. 0%
856800-5004S Turbo GTX2860R Gen II - 856800-5004S
Loppu varastosta
46mm 60mm 58 0.60 54mm 47mm 76 0.86 T25 5-Bolt Yes No Standard
1429.00 € 1152.42 € alv. 0%
856800-5002S Turbo GTX2860R Gen II - 856800-5002S
Loppu varastosta
46mm 60mm 58 0.60 54mm 47mm 76 0.72 V-Band V-Band No No Standard
1509.00 € 1216.94 € alv. 0%
856800-5001S Turbo GTX2860R Gen II - 856800-5001S
Loppu varastosta
46mm 60mm 58 0.60 54mm 47mm 76 0.57 V-Band V-Band No No Standard
1509.00 € 1216.94 € alv. 0%
Compressor    Turbine   Turbine kit
Turbo PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet Wastegate Divided Hinta
Turbo PN: 856800-5003S
1429.00 € 1152.42 € alv. 0%
856800-5003S
Compressor    Inducer
46mm 		Exducer
60mm		 Trim
58		 A/R
0.60		 Turbine    Inducer
54mm 		Exducer
47mm		 Trim
76		 Turbine kit    A/R
0.64 		Inlet
 T25		 Outlet
5-Bolt		 Wastegate
Yes		 Divided
No
1429.00 €
Rotation: Standard Loppu varastosta | 1152.42 € alv. 0%
Turbo PN: 856800-5004S
1429.00 € 1152.42 € alv. 0%
856800-5004S
Compressor    Inducer
46mm 		Exducer
60mm		 Trim
58		 A/R
0.60		 Turbine    Inducer
54mm 		Exducer
47mm		 Trim
76		 Turbine kit    A/R
0.86 		Inlet
 T25		 Outlet
5-Bolt		 Wastegate
Yes		 Divided
No
1429.00 €
Rotation: Standard Loppu varastosta | 1152.42 € alv. 0%
Turbo PN: 856800-5002S
1509.00 € 1216.94 € alv. 0%
856800-5002S
Compressor    Inducer
46mm 		Exducer
60mm		 Trim
58		 A/R
0.60		 Turbine    Inducer
54mm 		Exducer
47mm		 Trim
76		 Turbine kit    A/R
0.72 		Inlet
 V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No
1509.00 €
Rotation: Standard Loppu varastosta | 1216.94 € alv. 0%
Turbo PN: 856800-5001S
1509.00 € 1216.94 € alv. 0%
856800-5001S
Compressor    Inducer
46mm 		Exducer
60mm		 Trim
58		 A/R
0.60		 Turbine    Inducer
54mm 		Exducer
47mm		 Trim
76		 Turbine kit    A/R
0.57 		Inlet
 V-Band		 Outlet
V-Band		 Wastegate
No		 Divided
No
1509.00 €
Rotation: Standard Loppu varastosta | 1216.94 € alv. 0%

Actuator Assembly

480009-0009
89.00 €
71.77 € alv. 0% | Loppu varastosta
480009-0006
89.00 €
71.77 € alv. 0% | Loppu varastosta
