Wastegates
Garrett Vent | External wastegates are created by the engineers that designed G-Series and GTX Gen II turbochargers.
Available in three sizes: 40mm | 45mm | 50mm and four color combinations: Red | Blue | Black | Silver.
The valve housing is cast from high temp stainless steel and rated for exhaust temperatures up to 1050° C.
CFD optimized for maximum flow and thermal efficiency.
Our Nomex reinforced elastomer diaphragm provides exceptional durability and fatigue resistance.

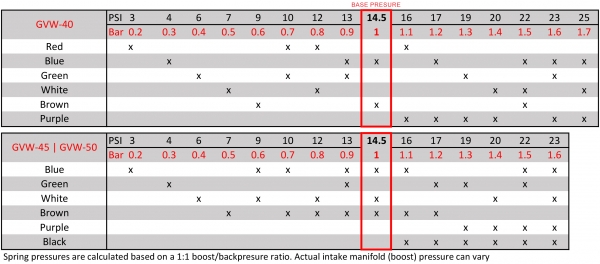

GVW wastegates are set to 1 Bar | 14.5 PSI of base pressure and can be configured from 0.2 Bar | 2.9 PSI - 1.7 Bar | 24.7 PSI
(considering 1:1 backpressure). The actuator design allows for multiple air/liquid fitting orientations. All fasteners, springs,
fittings, V-bands, clamps, and flanges included.
Model |
Red |
Blue |
Black |
Silver |
GVW-40 | 908827-0001 | 908827-0002 | 908827-0003 | 908827-0004 |
GVW-45 | 908828-0001 | 908828-0002 | 908828-0003 | 908828-0004 |
GVW-50 | 908829-0001 | 908829-0002 | 908829-0003 | 908829-0004 |
